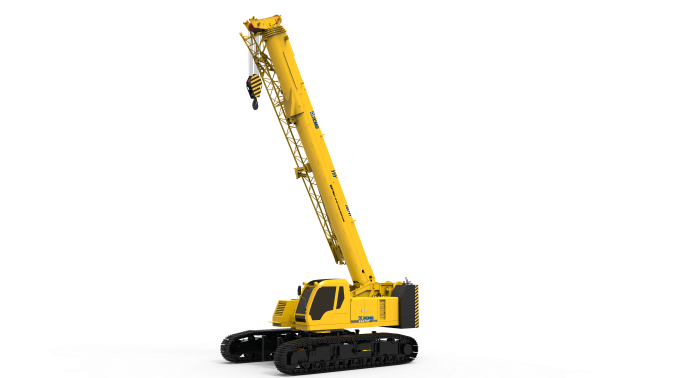

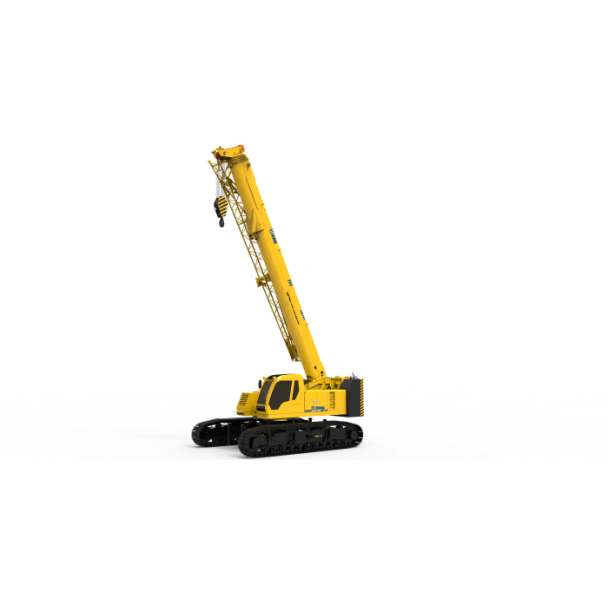

XGC75T
XGC75T telescopic crawler crane is suitable for urban building construction (municipal, factories, buildings, venues), transportation infrastructure (subway, high-speed rail, roads, bridges and culverts); especially prominent is especially suitable for muddy, soft ground, height change frequent steel structure plant construction area. It has the functions of lifting weight walking, counterweight self-disassembly, small angle lifting, narrow space operation and so on.
| 1.Max. lifting capacity | t | 75 |
| 2.Boom length | m | 46 |
| 3.Max. slewing speed | r/min | 2.0 |
| 4.Max. grade ability | % | 40 |
| 5.Max. lifting load moment | t.m | 2764 |
| 6.Engine rated power | kw | 199 |
| 7.Max. travel speed | km/h | 2.5 |
